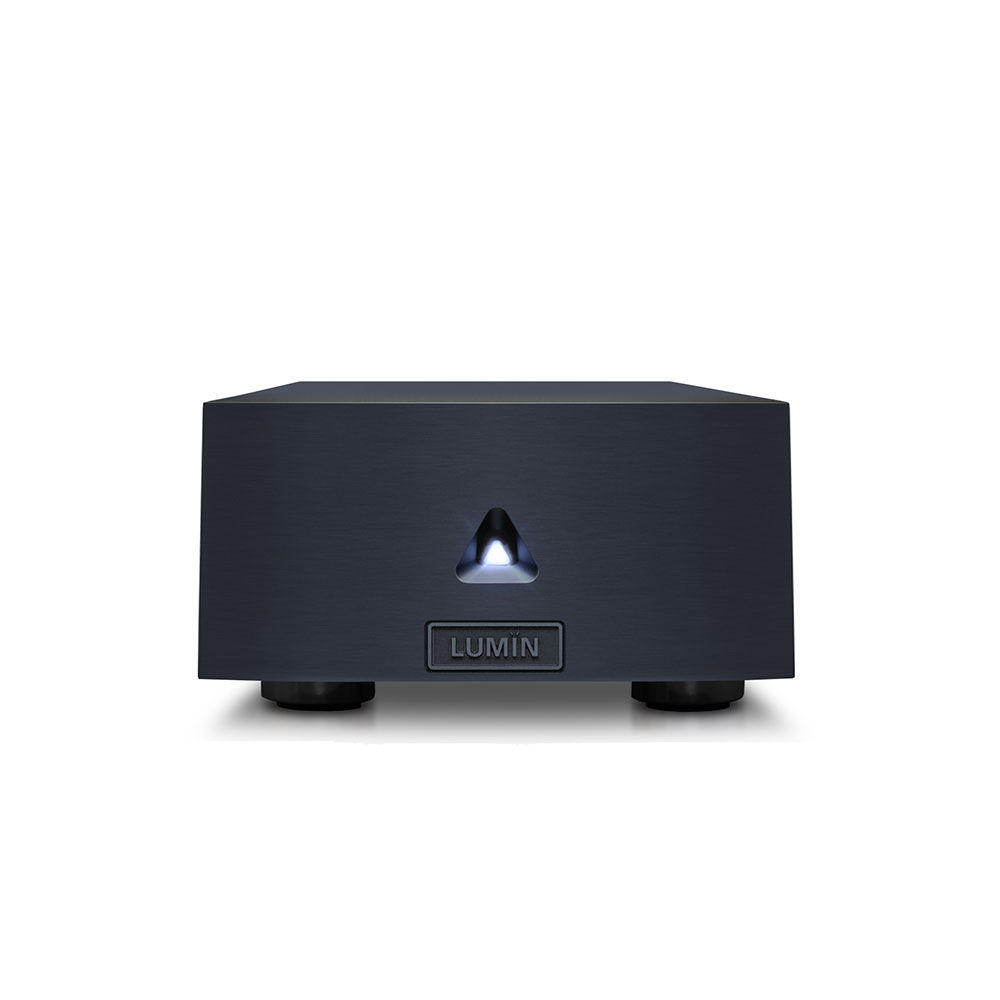

Lumin X1 Network Player
Never content, we’ve constantly been evaluating our streamers to see if there was any possible way to beat them. It’s taken years, but finally we’re ready to reveal Streaming’s New Cutting Edge.
Dual Mono dual stage linear regulator; Optical Network provides complete isolation from network digital noise; USB Digital Audio Output supports Native DSD512.
Re-engineered throughout
LUMIN X1 makes improvements in every possible location:
New processor delivers native DSD512 & PCM768 playback
Dual Mono design throughout maximises channel separation
Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
Femto Clock System with precision FPGA distribution
New Output Buffer design
Dual Mono dual-stage linear regulator
Optical Network provides complete isolation from network digital noise
USB Digital Audio Output supports Native DSD512Entirely new Power Supply
New solid billet CNC casing design
Separate digital & analogue circuitry
Low-noise linear regulator
New 9-pin output connector
Available as an upgrade for existing S1 / A1 / T1 customersColor Black, Silver DSD
support
Up to DSD512 22.6MHz, 1-bit PMC
support
Up to 768kHz, 16–32-bit, Stereo Analog
output stage
Dual ESS SABRE32 ES9038Pro DAC chips Fully balanced layout with high-quality components, Output connectors coupled with dual LUNDAHL LL7401 output transformers Femto Clock System with precision FPGA distribution Upsampling
rates & bit depths
DSD128 upsampling option for all files PCM 384kHz upsampling option for all files Digital output stage USB: Native DSD512 support PCM 44.1–768kHz, 16–32-bit, Stereo BNC
SPDIF
PCM 44.1kHz–192kHz, 16–24-bit DSD (DoP, DSD over PCM) 2.8MHz, 1-bitOptical network Industry-standard SFP 1000Base-T Gigabit Ethernet Adapter may be needed for your particular switch/cables Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS) Power supply External solid billet cnc dual-toroidal Separate digital & analog circuitry Low-noise linear regulator 9-pin Output Connector Streaming protocol UPnP AV protocol with audio streaming extension (OpenHome) Gapless Playback On-Device Playlist App
features
internet links to artists/album/songs Saving and restoring of playlists (including Tidal and Quobuz), Multiple tag handling Composer tag support Album-grouping in playlist Automatic, Native support for TIDAL, MQA, Qobuz
and TuneIn Radio. Tidal MQA icons to identify high-res music., Qobuz high-res icons to identify high-res music Volume control High-resolution artwork Artwork caching Search
Supported
audio file
formats
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (lossy) Audio: MP3, AAC (in M4A container) MQAInput Optical SFP network 1000Base-T Gigabit Ethernet RJ45 network 1000Base-T Gigabit USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only) Analogue
audio
outputs
XLR balanced, 6Vrms, pin 2 Hot RCA unbalanced, 3Vrms Supported
control
devices
All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support. Android devices. Android 4.0 (Ice Cream Sandwich) or later required Other Programme of Continuous Development – Firmware-upgradable for further features and enhancements Finish Raw brushed aluminium or black anodised brushed aluminium Dimensions LUMIN (SOLID ALUMINIUM CHASSIS): 350mm (W), 345mm (D), 60mm (H), 8kg PSU (SOLID ALUMINIUM CHASSIS): 106mm (W), 334mm (D), 60mm (H), 4kg Class A
