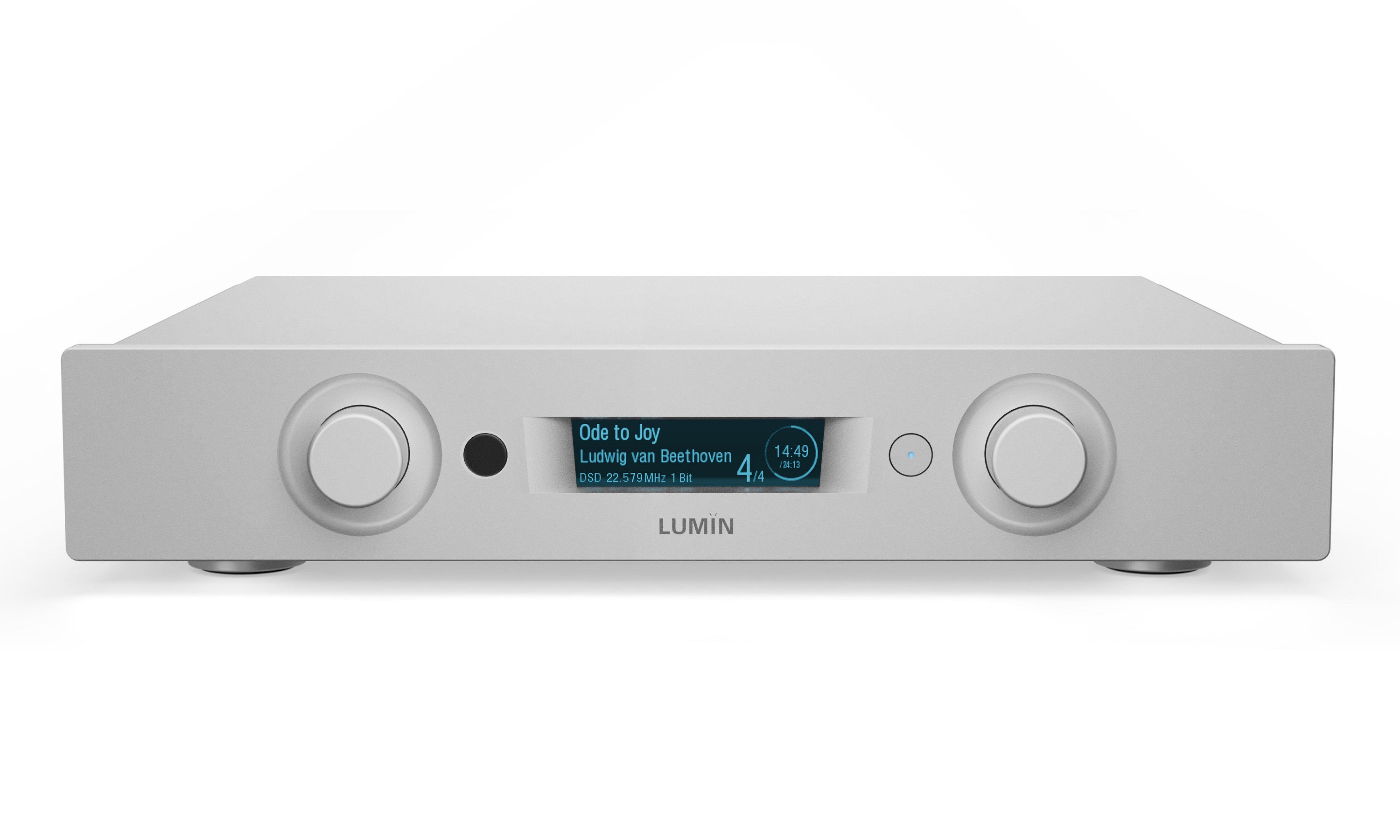

Lumin P1 MINI Network Music Player and Hi-Fi Hub
MULTI-AWARDWINNING P1 FEATURES PACKED INTO A NEW COMPACT CHASSIS
Builds on the success of the multi-award-winning LUMIN P1 by packing as much of the componentry and flexibility as possible into a chassis based on our massively popular D3 and U2 Mini all-aluminium designs.
LUMIN P1 MINI - Network Music Player and Hi-Fi Hub
Builds on the success of the multi-award-winning LUMIN P1 by packing as much of the componentry and flexibility as possible into a chassis based on our massively popular D3 and U2 Mini all-aluminium designs.
LUMIN P1 MINI HIGHLIGHTS
* Five inputs including USB, HDMI, SPDIF and Analogue
* HDMI with stereo input + AV Passthrough & ARC
* Dual DAC ES9028PRO
* DSD512 & PCM384
* Femto Clock System with precision FPGA distribution
* New internal toroidal linear power supply
* Dual Network with Optical Fibre Network supportNEW ANALOG INPUT FEATURES
* Stereo analogue input
* LEEDH volume processing
* Passthrough function for home cinema integration
with custom naming functionaityNEW HDMI INPUT FEATURES
* HDMI 2.0 Specification compatible
* Supports 2.0 PCM audio decoding
* HDR, Dolby Vision, Dolby Atmos, DTS passthrough
* ARC compatible outputLUMIN APP
* Full control of playback and settings
* Input selection
* Per-input volume memory
* Custom input labelsLUMIN P1 MINI - HI-FI HUB
Connect all stereo sources to LUMIN P1 Mini and it becomes a source switcher, DAC and pre-amp.NETWORK MUSIC PLAYER
LUMIN P1 Mini can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing2-CHANNEL AV SYSTEM
No need for an AV Receiver. Simply attach P1 Mini to a TV. With HDMI ARC, all audio comes through your main speakersColor Black, Silver DSD
support
DSD512 22.579MHz, 1-bit Stereo PMC
support
Up to 384kHz, 16–32bit, Stereo, MQA Full Decoding Analog
output
stage
Fully balanced layout with high-quality components,
Dual ESS SABRE32 ES9028Pro DAC
Analogue audio
outputs
XLR balanced, 6Vrms, pin 2 Hot
RCA unbalanced, 3Vrms
Streaming
protocol
AirPlay 2 -compatible, Gapless Playback, On-Device Playlist, Roon Ready, Spotify Connect, TIDAL Connect, Qobuz, UPnP AV protocol with audio streaming extension (OpenHome), Multi-Room (Songcast), PLEX, FLACLossless Radio. TuneIn Radio. Supported audio
file
formats
Compressed (lossy) Audio: MP3 MQA, DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD), PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Upsampling
rates &
bit
depths
DSD upsampling option for all files up to DSD128 / PCM 384kHz Supported
control
devices
Apple devices iOS 11.0 or later, Android devices Android 4.0 (Ice Cream Sandwich) or later required App
features
Album-grouping in playlist, Artwork caching, Automatic internet links to artists/album/songs, Composer tag support, High-resolution artwork, Multiple tag handling, Native support for TIDAL, MQA, Qobuz and TuneIn Radio., Qobuz high-res icons to identify high-res music, Saving and restoring of playlists (including Tidal and Qobuz), Search, Tidal MQA icons to identify high-res music, Volume control Input Ethernet RJ45 network 1000Base-T
USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
Industry-standard SFP 1000Base-T Gigabit Ethernet Adapter may be needed for your particular switch/cabl s
Finish Black anodised aluminium
Raw anodised aluminium
Power
supply
Internal toroidal linear. Low-noise linear regulator Physical 400mm (W), 314mm (D), 77mm (H), 7kg Other Firmware-upgradable for further features and enhancements Class A
